Investigation of Aileron Hinge Moment of National Transport Aircraft Basic to Numeric Method

Dana Hediana and Sinung Tirtha Pinindriya and Ratna Triwulandari (2014) Investigation of Aileron Hinge Moment of National Transport Aircraft Basic to Numeric Method. Proceedings International Seminar of Aerospace Science and Technology, 2015. pp. 45-51.

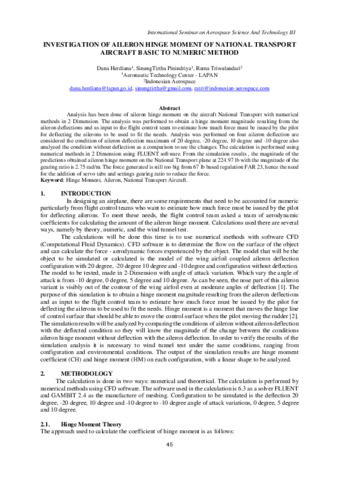

[thumbnail of Prosiding_Dana Herdiana dkk_Pustekbang_2015.pdf]
Prosiding_Dana Herdiana dkk_Pustekbang_2015.pdf

Download (633kB) | Preview


Analysis has been done of aileron hinge moment on the aircraft National Transport with numerical
methods in 2 Dimension. The analysis was performed to obtain a hinge moment magnitude resulting from the
aileron deflections and as input to the flight control team to estimate how much force must be issued by the pilot
for deflecting the ailerons to be used to fit the needs. Analysis was performed on four aileron deflection are
considered the condition of aileron deflection maximum of 20 degree, -20 degree, 10 degree and -10 degree also
analyzed the condition without deflection as a comparison to see the changes. The calculation is performed using
numerical methods in 2 Dimension using FLUENT software. From the simulation results , the magnitude of the
predictions obtained aileron hinge moment on the National Transport plane at 224.97 lb with the magnitude of the
gearing ratio is 2.75 rad/m. The force generated is still too big from 67 lb based regulation FAR 23, hence the need
for the addition of servo tabs and settings gearing ratio to reduce the force

Item Type: Article
Additional Information: ISBN 978-602-71833-1-5
Uncontrolled Keywords: Hinge Moment, Aileron, National Transport Aircraft
Subjects: Taksonomi LAPAN > Teknologi Penerbangan dan Antariksa > Alih Teknologi > Aeronautika
Divisions: LAPAN > Deputi Teknologi Penerbangan Dan Antariksa > Pusat Teknologi Penerbangan
Depositing User: Administrator Repository
Date Deposited: 16 Mar 2021 14:13
Last Modified: 14 Jul 2022 19:58
